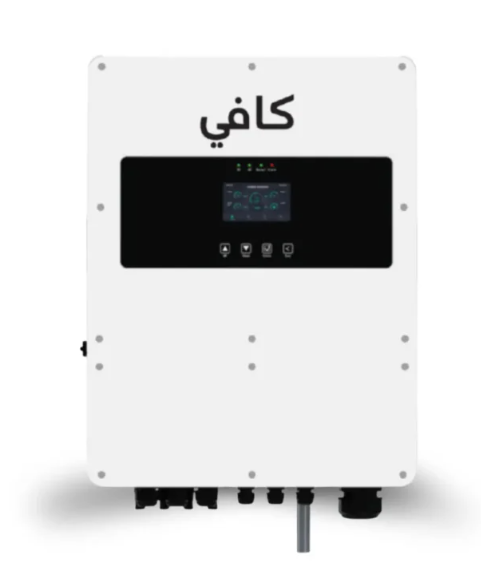

Kafi 10KW Hybrid Solar Inverter with Dual MPPT & 15000W PV Input
Kafi 10KW Hybrid Solar Inverter with Dual MPPT & 15000W PV Input
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Kafi 10KW Hybrid Solar Inverter with Dual MPPT & 15000W PV Input
Overview
The Kafi 10KW Hybrid Solar Inverter is engineered for high-demand energy systems, delivering powerful performance with enhanced solar input capacity. Designed for large residential and commercial applications, it combines advanced MPPT technology, intelligent battery integration, and robust output capability for reliable and efficient energy management.
Key Features
- 10KW rated output with 15000W PV input capacity
- Dual MPPT with wide voltage range for optimized solar harvesting
- Smart lithium battery integration with BMS communication
- High surge handling capability for heavy loads
- Designed for continuous operation under demanding conditions
- Comprehensive protection system for safety and reliability
Technical Specifications
Battery
| Specification | Details |
|---|---|
| Voltage Range | 40–60V |
| Max Charge Current | 280A |
| Max Discharge Current | 280A |
PV Input
| Max PV Power | 15000W |
| MPPT Voltage Range | 150–700V |
| Max Input Current | 26A + 26A |
Output
| Rated Power | 10KW |
| Max Output Power | 12000W |
| Peak Power | Up to 2× (10s) |
| Output Voltage | 230V / 400V (3-phase) |
Efficiency
| Max Efficiency | 97.9% |
| Euro Efficiency | 97.0% |
General
| Cooling | Smart Cooling |
| Communication | CAN / RS485 |
| Protection Rating | IP66 |
Performance Details
Built for demanding environments, the inverter delivers stable high-power output with superior efficiency up to 97.9%. Its dual MPPT system ensures maximum solar energy utilization across a wide voltage range.
Battery & Charging Information
Supports advanced lithium battery systems with intelligent BMS communication, enabling optimized charging, enhanced safety, and long-term reliability under high-load conditions.
Physical Specifications
Robust and durable design with IP66 protection, suitable for outdoor installations and continuous operation in challenging environments.
Connectivity & Smart Features
- CAN and RS485 communication interfaces
- Smart battery management integration
- Advanced monitoring and control capabilities
Environmental Conditions
Designed for outdoor durability with IP66 protection, ensuring resistance to dust, moisture, and harsh environmental conditions.
