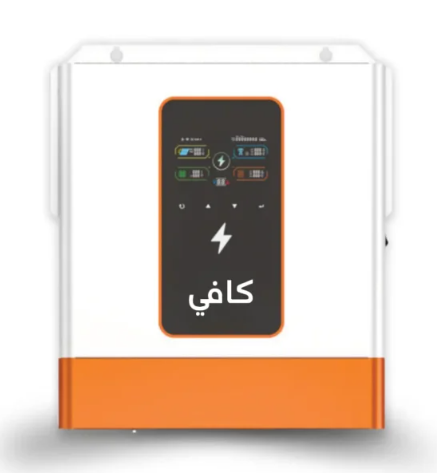

KAFI 3.5KW Hybrid Solar Inverter (24V) – PV 4000W

KAFI 3.5KW Hybrid Solar Inverter (24V) – PV 4000W

Rs.75,000.00
Rs.75,000.00 Rs.81,200.00
SAVE 7% Sold out

Overview

The KAFI 3.5KW 24V Hybrid Inverter is a compact and efficient solar energy solution designed for small homes, shops, and backup power systems. Combining a space-saving design with high-performance MPPT technology, it delivers stable pure sine wave power while offering flexible load management through multiple priority modes.

Key Features

  • 3.5KW Pure Sine Wave output for clean power delivery
  • Integrated MPPT Solar Charger supporting up to 4000W PV input
  • High energy conversion efficiency of up to 96%
  • Lithium battery compatible with specialized PV activation
  • Four smart output priority modes: UTL, SOL, SBU, and SUB
  • Battery Equalization (EQ) function to optimize and extend battery life
  • Durable, anti-shock design with a detachable dust cover for harsh environments
  • Optional WiFi monitoring via the Smart ESS App for real-time tracking

Technical Specifications

System Performance

Specification Details
Rated Power 3500W / 3500VA
Surge Power 7000VA
Max PV Input Power 4000W
Peak Efficiency 96% (PV to INV)

AC Input / Output

Nominal Voltage 230VAC
Output Voltage 220/230VAC ±5%
Voltage Range 90–280VAC (Appliances) / 170–280VAC (PCs)
Transfer Time 10ms (PCs) / 20ms (Appliances)

Solar & Battery Charger

Battery Voltage 24V DC
MPPT Voltage Range 30V – 500V DC
Max PV Open Circuit (Voc) 500V DC
Max Charge Current 100A (Solar) / 60A (AC)

Physical & Environment

Dimensions 330 × 278 × 98 mm
Net Weight 3.95 kg
Operating Temp -10°C to 55°C
Protection Rating IP21

Advanced Energy Management

The KAFI 3.5KW inverter is designed for versatility. It supports four distinct operating modes (UTL, SOL, SBU, SUB) to prioritize energy sources based on your specific needs, whether you want to maximize solar usage or ensure constant uptime through the grid. The integrated Battery EQ function automates the equalization process, preventing battery stratification and significantly extending the lifespan of your storage bank.

Connectivity & Installation

Installation is made simple with its lightweight, wall-mounted chassis. Users can monitor system performance remotely via the optional WiFi module and the Smart ESS App. Its wide MPPT voltage range (30-500V DC) allows for flexible solar panel configurations, making it one of the most adaptable small-scale inverters on the market.

Ideal For

  • Small residential homes
  • Retail shops and small offices
  • Essential load backup (Lights, Fans, Laptops)
  • Low-load off-grid applications
