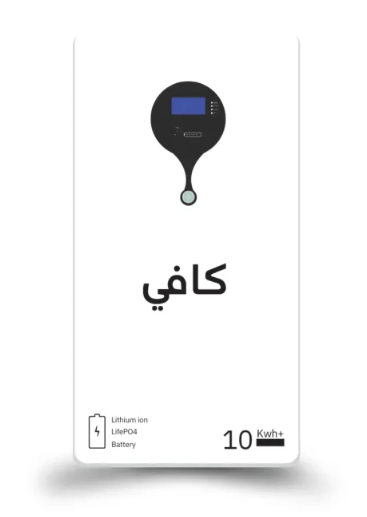

KAFI 51.2V 200Ah Lithium Battery (10.24kWh) – KAFI-10240Wh
KAFI 51.2V 200Ah Lithium Battery (10.24kWh) – KAFI-10240Wh
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
KAFI 51.2V 200Ah Lithium Battery (10.24kWh) – KAFI-10240Wh
Overview
The KAFI 10.24kWh Lithium Battery is engineered to provide a perfect balance between capacity and high-current performance. Designed specifically for medium-sized residential and commercial solar systems, this 200Ah power bank utilizes advanced LiFePO₄ chemistry to deliver deep-cycle reliability. Its wall-mounted, compact structure ensures that even high-capacity storage remains unobtrusive in your home or office.
Key Features
- 10.24kWh High-capacity energy storage for extended backup
- Premium LiFePO₄ cells for superior thermal and chemical stability
- 6000+ cycle life at 25°C, ensuring over a decade of daily use
- High 200A Max Discharge current for heavy appliance support
- Intelligent Smart BMS for automated cell protection and management
- Front-facing LCD display for real-time monitoring of energy levels
- Multi-port communication (CAN/RS485/RS232) for smart inverter integration
- Compact, wall-mounted heavy-duty design
Technical Specifications
Electrical Performance
| Specification | Details |
|---|---|
| Nominal Voltage | 51.2V |
| Capacity | 200Ah |
| Total Energy | 10240Wh (10.24kWh) |
| Voltage Range | 40.0V – 58.4V |
| Charge Voltage | 55.2V – 58.4V |
Power & Cycle Life
| Max Discharge Current | 200A |
| Max Charge Current | 100A |
| Cycle Life | >6000 cycles @ 25°C |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
Intelligent Protection System
The KAFI-10240Wh features a sophisticated Intelligent BMS (Battery Management System) that acts as the brain of the battery. It ensures maximum safety by providing precise control over:
- Over-current Protection: Safely manages high-draw startup loads.
- Temperature Monitoring: Prevents charging or discharging in unsafe thermal conditions.
- Voltage Safeguards: Protects against both overcharge and deep over-discharge.
- Short-circuit Protection: Integrated circuitry for immediate fault isolation.
Integration & Monitoring
This battery series is designed to work in harmony with the industry’s leading hybrid inverters. By utilizing the CAN or RS485 ports, the battery shares critical data with the inverter to maximize charging efficiency. The integrated LCD screen provides users with immediate on-site data regarding voltage, current, and State of Charge (SOC).
Ideal For
- Medium-sized residential homes (3-5 bedrooms)
- Small to medium retail shops and offices
- UPS backup systems for sensitive equipment
- Hybrid solar systems requiring high discharge current
Why Choose the KAFI 200Ah?
With double the capacity of the standard 100Ah model, the KAFI 200Ah (10.24kWh) is the smart choice for users looking to achieve significant energy independence. It offers enough storage to power essential appliances throughout the night while providing the high-current output necessary to run more demanding motorized loads during power outages.
