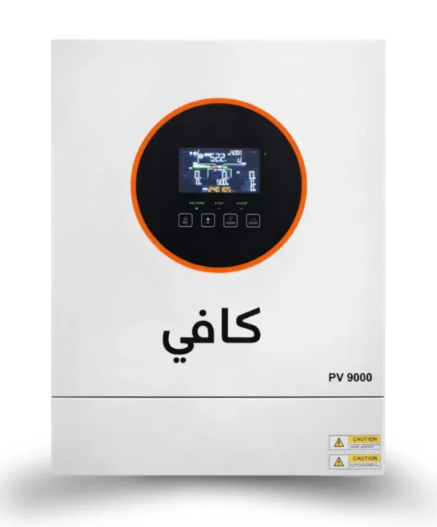

Kafi 8KW Hybrid Solar Inverter with Dual MPPT & 9000W PV Input (48V)
Kafi 8KW Hybrid Solar Inverter with Dual MPPT & 9000W PV Input (48V)
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Kafi 8KW Hybrid Solar Inverter with Dual MPPT & 9000W PV Input (48V)
Overview
The KAFI 8KW IP21 Hybrid Inverter is a high-capacity energy powerhouse designed for modern homes and light commercial applications. With a robust 8000W output and a massive 9000W PV input, this inverter provides the strength needed to run heavy loads while maximizing solar harvesting through its dual MPPT trackers. It is the ideal solution for users seeking a reliable, smart, and scalable energy ecosystem.
Key Features
- 8KW Pure Sine Wave output for high-demand residential and commercial loads
- Built-in Dual MPPT trackers (15A × 2) for optimized energy yield in all conditions
- Massive 9000W PV input capacity to maximize solar energy utilization
- Universal battery support for both Lithium (LiFePO₄) and Lead-acid systems
- Smart dual output load management to prioritize critical circuits
- Built-in BMS communication for intelligent battery protection
- Anti-backflow CT function for precise grid energy control
- Optional WiFi and Bluetooth for real-time remote monitoring and control
Technical Specifications
System Overview
| Specification | Details |
|---|---|
| Rated Power | 8000W / 8000VA |
| Surge Power | 12000VA |
| Peak Efficiency | 93% |
| Transfer Time | 10ms (PC) / 20ms (Appliances) |
Solar & Battery System
| Max PV Input Power | 9000W |
| MPPT Trackers | 2 (15A × 2) |
| MPPT Voltage Range | 60V – 450V DC |
| Battery Voltage | 48V DC |
| Max Total Charge Current | 120A |
Physical & Build
| Dimensions | 458 × 400 × 130 mm |
| Net Weight | 12.5 kg |
| Communication | RS232, USB, CAN, RS485 |
| Protection Rating | IP21 |
Performance Details
The KAFI 8KW inverter is engineered for stability under heavy usage. With its pure sine wave technology and a surge capacity of 12000VA, it easily starts up high-power motors, air conditioners, and large appliances without risking voltage drops. The dual MPPT system provides redundancy and flexibility, allowing for different solar panel orientations to capture maximum sunlight throughout the day.
Battery & Charging Information
This 48V system is built to work in harmony with advanced Lithium (LiFePO₄) batteries through a dedicated BMS port, but also offers full support for traditional Lead-acid banks. With a 120A max solar charge current, your energy storage is replenished rapidly, ensuring you are prepared for nighttime use or grid outages.
Physical Specifications
Designed for space-efficient indoor installation, the unit features a modern, clean build with integrated cooling for low-noise operation. The intuitive layout includes easy-access communication ports for rapid setup, and the IP21-rated chassis ensures protection within residential or commercial utility rooms.
Connectivity & Smart Features
- Full communication suite including RS232, USB, CAN, and RS485
- Optional expansion for WiFi and Bluetooth mobile app integration
- Smart load management allows for automated shedding of non-essential loads
- Anti-backflow CT functionality for smart energy monitoring and grid compliance
Environmental Conditions
Built to last in varied environments, the K-8KW operates reliably from -10°C up to 50°C. It is designed to maintain high performance in humidity levels up to 95% (non-condensing), making it a durable choice for a wide range of geographical climates.
