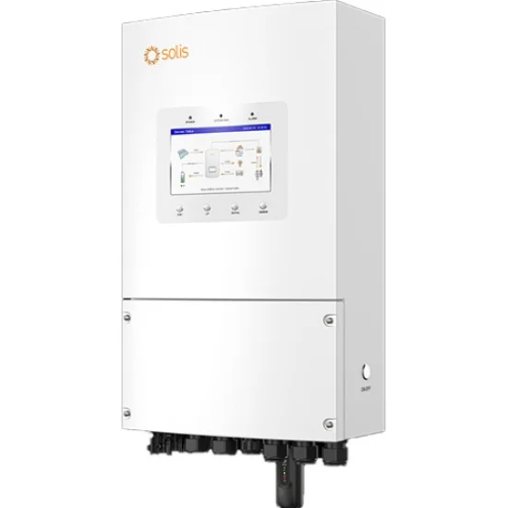

SOLIS 12KW HYBRID INVERTER SINGLE PHASE (LV)

Solis 12kW Hybrid Inverter Single Phase: The Solis 12kW Hybrid Inverter (Single Phase) is a high-capacity energy storage solution built for large residential properties and small commercial setups requiring high-output power on a single-phase grid. It combines high solar input limits, rapid backup transitions, and robust low-voltage battery management to maintain continuous energy independence.

Solis 12kW Single Phase Hybrid Inverter Features:

• AC Output Power: 12kW rated output continuous capacity.

• Surge Capacity: 200% overload capacity for up to 10 seconds in off-grid mode, vital for kicking on heavy motorized appliances like air conditioners and water pumps.

• PV Input Oversizing: Accommodates up to 160% DC-to-AC oversizing, allowing a total connected solar array capacity of up to 19.2 kW.

• MPPT Configuration: Multi-MPPT design with support for up to 40A input current, making it highly compatible with modern high-power 182mm and 210mm solar panels.

• Battery Voltage Layout: Operates as a Low Voltage (LV) hybrid system, supporting standard 48V setups (compatible battery voltage range of 40V to 60V).

• Charge/Discharge Efficiency: Features a maximum charging and discharging current of up to 350A to cycle high volumes of power rapidly into your battery banks.

Download Datasheet: Solis 12kW Single Phase Hybrid Solar Inverter Datasheet.pdf
